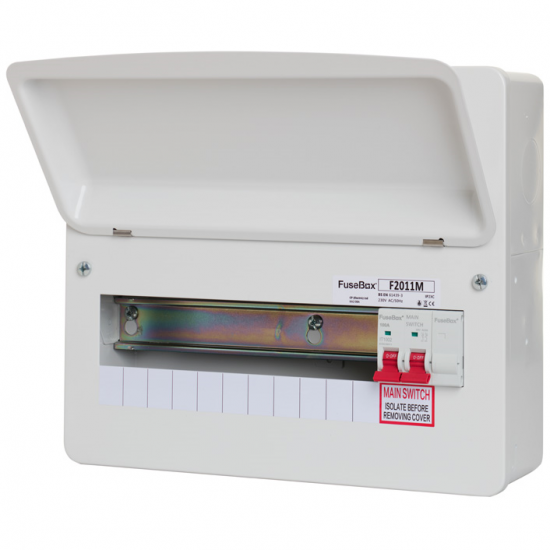

Consumer Unit 11 Way Main Switch 100A F2011M

FuseBox F20011M is a robust metal consumer unit that is finished in smooth white. It has conduit knockouts on all sides and large knockouts on the rear, making it easy to install. The earth and neutral terminal bars are positioned at the top, and blanks and circuit identification labels are supplied with the unit.

The F20011M has 11 usable ways and comes with a 100A main switch incomer and a tails clamp. It also has space for a surge protection device. The F20011M has enough space for both standard height and mini RCBOs. Additional features of the Fusebox consumer unit range include captive screws on the front cover, round knockouts on all four sides, and two large rectangular knockouts on the rear.

• Dimension Drawing: 4
• Weight: 3.2kg
• Dimensions (HxWxD): 259x306x113mm
• Double Blank: No
• Tail Clamp Compatible (ACCF): Yes
• Standard: EN 61439-3
• Rated Voltage (Un/AC): 230V
• Frequency(Hz): 50/60
• Protection Degree (IP): 2XC
• Maximum Terminal Bar Capacity: 16mm²
• Terminal Bar Tightening Torque (Nm): 2.0
• Device Mounting: 35mm Din Rail
• Material: 1mm Electro Galvanised Steel (Zinc)
• Finish: RAL 9001 Powder Coated Smooth Finish
• Knockouts: Selection 20mm-40mm
