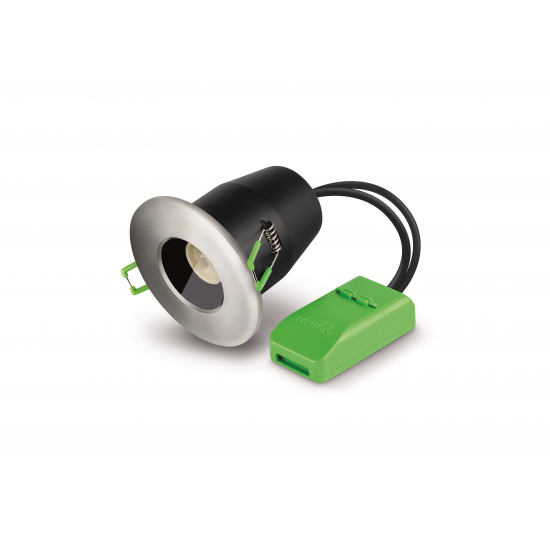

Downlight IP65 Brushed Nickel JC010016/BN

Slim pro?le, die-cast aluminum bezels, designed speci?cally for LED lamps with ultra-fast press ?t loop-in/loop-out terminal.  Tested for use in solid, I-Joist, and steel open web joist ceilings. Thermally tested for use with mineral wool insulation. IP20-rated and IP65-rated variants are available, and IP20-rated tilt variants are available. Complies with 2014 building regulations: Part B, C, and E, Cut-out ?74mm.

• Product Group: Fire-rated downlights
• Product Range: Fireguard® Next Generation
• Trade Name: Fireguard®
• Product Shape: Round
• Mounting: Recessed
• Product Weight: 0.205kg
• Color Finish: Brushed nickel

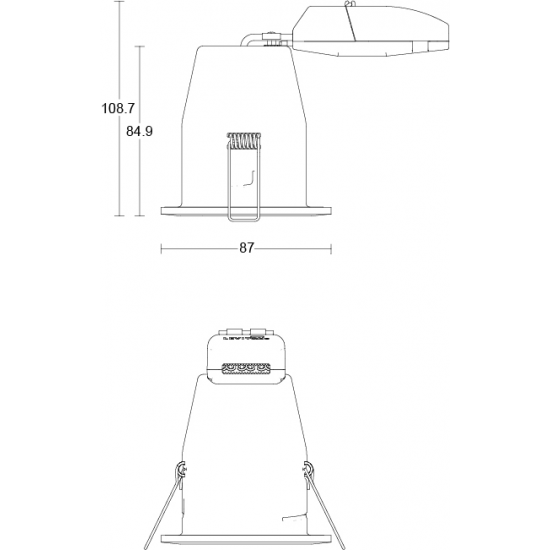

• Overall Dimensions: 108.7 x 87 mm
• Recommended Product Location: Indoor use only
• Minimum Void Requirement: 150mm
• Method Of Fix: Spring clips
• Product Aperture Size: 74mm
• IP Rating: IP65
• Environment: Indoor
• Suitable For Zones: Zone 1
• Lamp Supplied: No
• Diffuser / Shade Dimensions (mm): 87
• Distance From Lighted Object: 0.3m
• Duration of Fire Protection ( Mins): Tested for use in fire-rated ceilings. Full information and up-todate fire testing certificates for ceiling system types are available on JCC.CO.UK
• Origin of manufacturer: Made in China
• Warranty: 2-year standard warranty (See Website for terms and conditions)
• Lighting Product: Type 1 Fired Rated Downlights
• Electrical Voltage Rating: 220-240
• Operating Frequency Hz: 50/60Hz
• Luminaire Circuit Wattage: 7W LED Max
• Class: Class I, earth required
• Input Electrical Connections: Live(Brown), Neutral(blue), Earth(yellow/green) - Loop in/Loop out press fit terminal
• Dimmable: Check with the lamp manufacturer
• Lampholder: GU10 cap
• Room Ambient Temperature: 25°C
