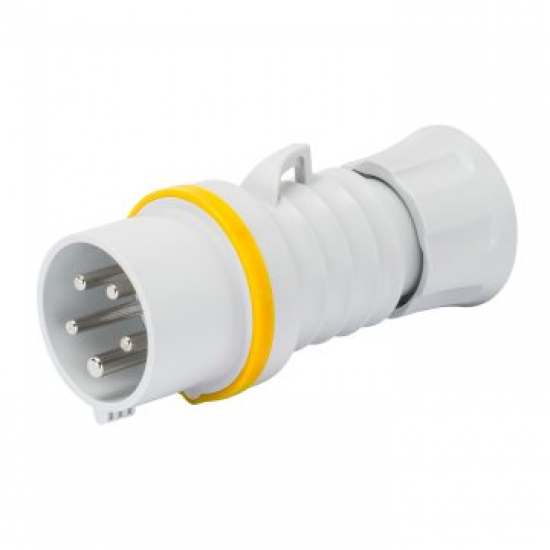

Screw Wiring IP44 2P+E 4h Plug GW60001H

The GW60001H IEC 309 HP range offers a variety of plugs and socket outlets that meet the stringent safety standards of IEC 60309-1 and IEC 60309-2, as well as their European equivalents, EN 60309-1 and EN 60309-2. This range enhances GEWISS's product line with options from 16A to 125A, including straight plugs, straight connectors, and 10° flush-mounting socket outlets. These products come with IP44/IP54 and IP66/IP67/IP68/IP69 protection ratings, ensuring optimal protection for any application.

Constructed from robust technopolymers and featuring thick insulating materials, the GW60001H range offers superior resistance to mechanical stress and chemical agents. The nickel-plated sleeves and pins on all socket outlets and plugs provide excellent protection against corrosion, oxidation, and wear. Additionally, all external metal components are made of stainless steel, while the threaded metallic inserts for the body-grip coupling in the 63-125A versions are made of brass. This comprehensive design ensures durability and reliability in all conditions.

• Colour: Yellow
• IP degree: IP44/IP54
• Shock resistance: IK09
• Type Straight: Plug
• Frequency: 50/60 Hz
• Cable Clamp Tightening Capacity: 7.5-13.8mm
• Type of Wiring: With Screw
• Electrocod: 2230
• Total number of operations: >5000
• Breaking capacity at 1.1 Un: 20A
• Thermo-pressure with ball: 125 °C (active parts) - 80 °C (passive parts)
• Rated current(A): 16
• No. of poles: 2P+E
• Reference h: 4
• Rated Voltage: 100 - 130V
• Terminal Tightening Capacity: 1-2.5mm² flexible cables - 1.5-4mm² rigid cables
• Operating Temperature: -25 +55 °C
• Type of Material: Halogen-free in compliance with EN 60754-2
• Glow wire test 850 °C (active parts) - 650 °C (passive parts)
• Permissible Overload: 22A
• Insulation Resistance: >10M?
